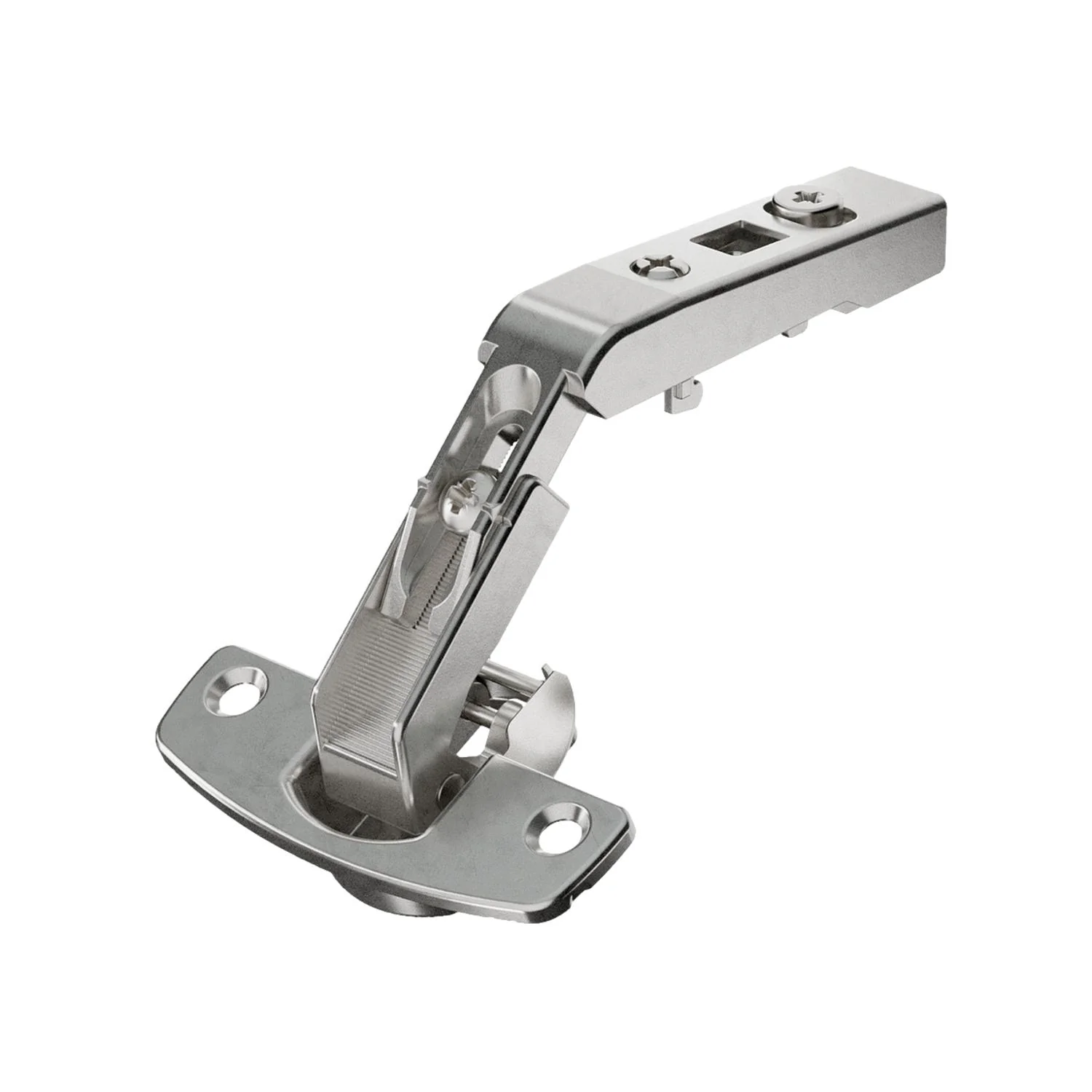

Hettich Intermat 9930 Corner Cabinet Hinge 50-65 Degree TB45
Intermat overlay hinge for corner cabinet folding doors with 50° / 65° opening angle.
- Without self closing feature (Intermat 9930)
- For door thickness 15 - 21 mm

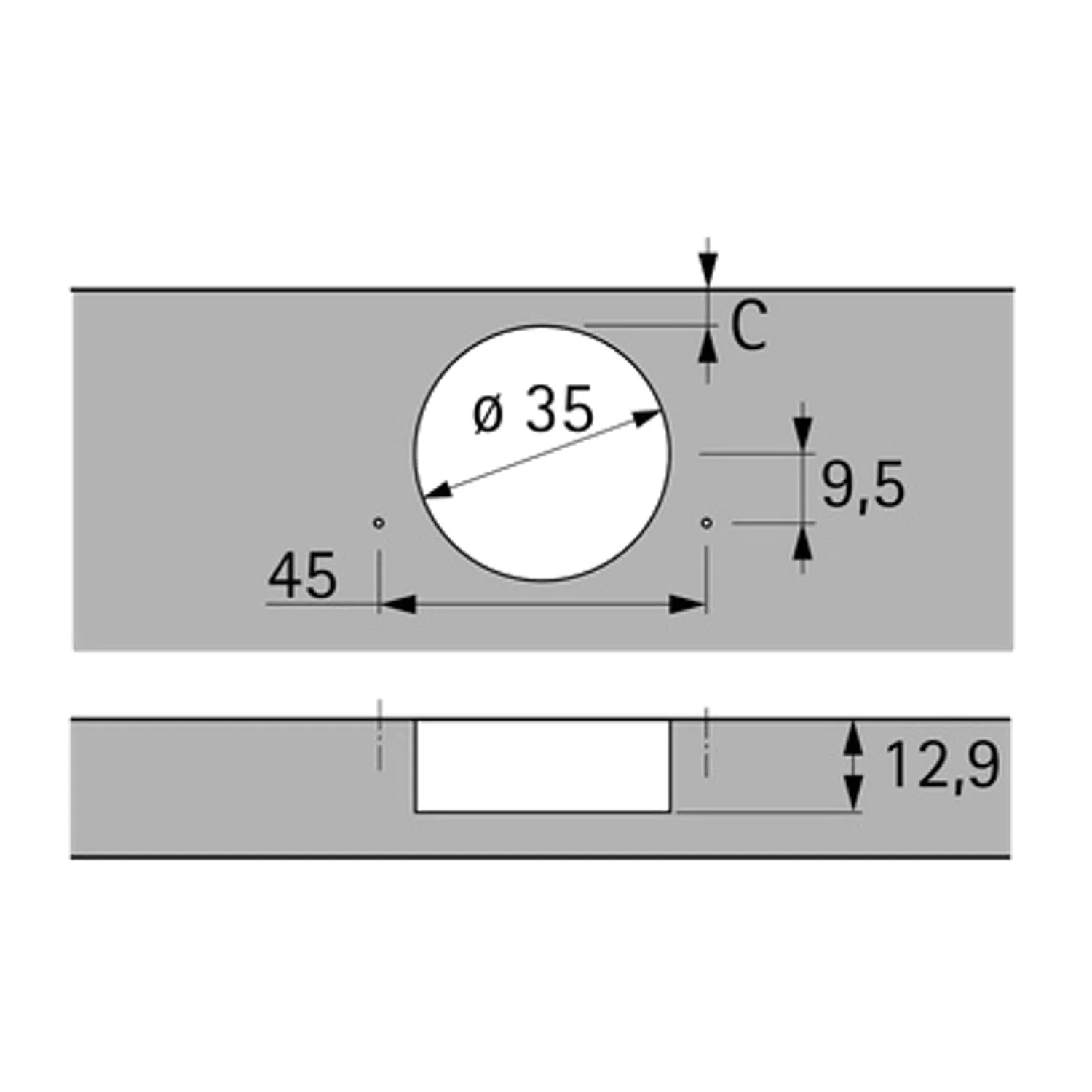

- Drilling pattern TB 45 x 5,5 mm (45mm hole centres)
- Cup depth 10.5 mm

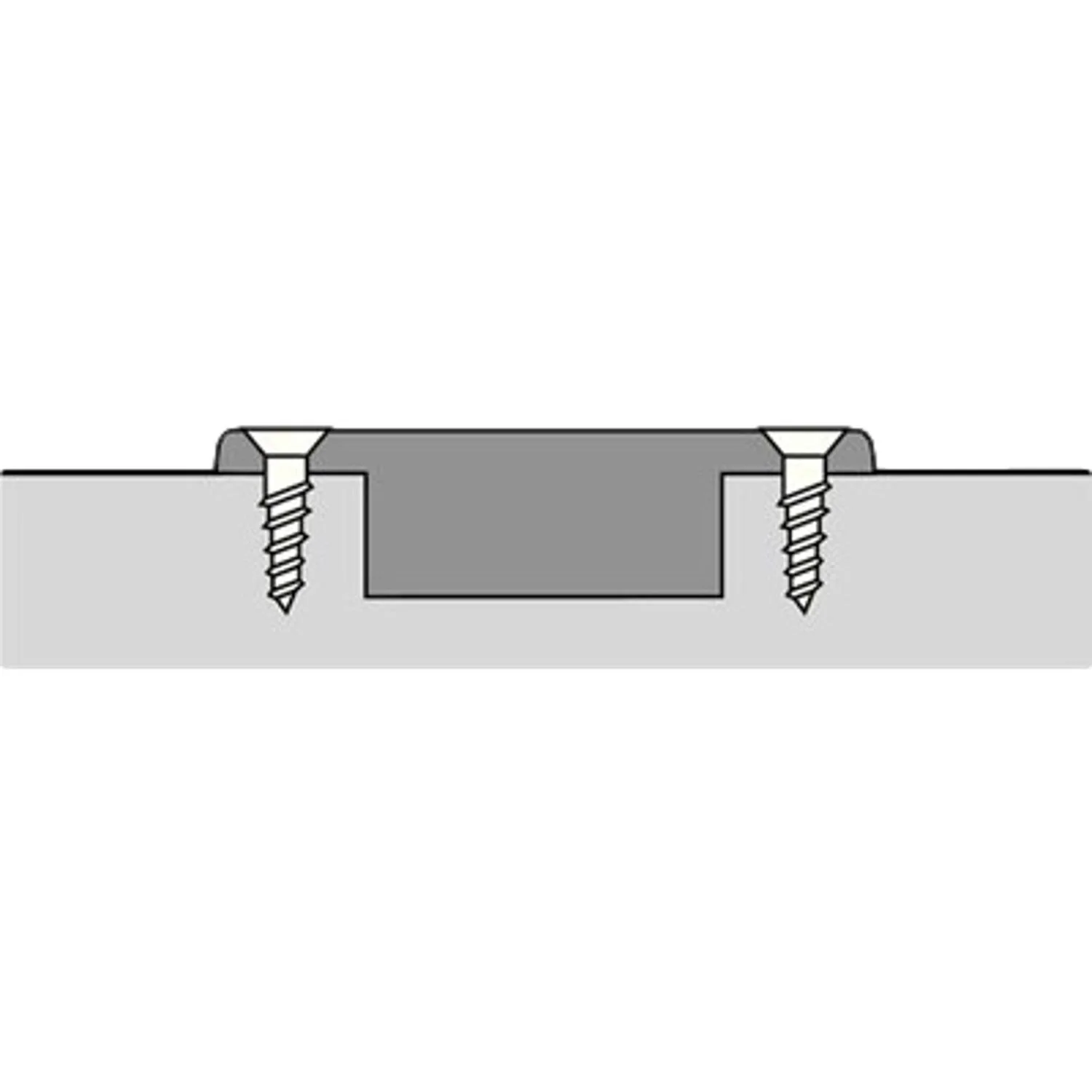

- Installation for screwing on
- Integrated diagonal adjustment +9.5 mm / -9.5 mm
- Height adjustment at mounting plate (mounting plate not included)
- steel / die-cast zinc nickel plated
$8.17
Hettich Intermat 9930 Corner Cabinet Hinge 50-65 Degree TB45—
$8.17
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Intermat overlay hinge for corner cabinet folding doors with 50° / 65° opening angle.
- Without self closing feature (Intermat 9930)
- For door thickness 15 - 21 mm
- Drilling pattern TB 45 x 5,5 mm (45mm hole centres)
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated diagonal adjustment +9.5 mm / -9.5 mm
- Height adjustment at mounting plate (mounting plate not included)
- steel / die-cast zinc nickel plated
