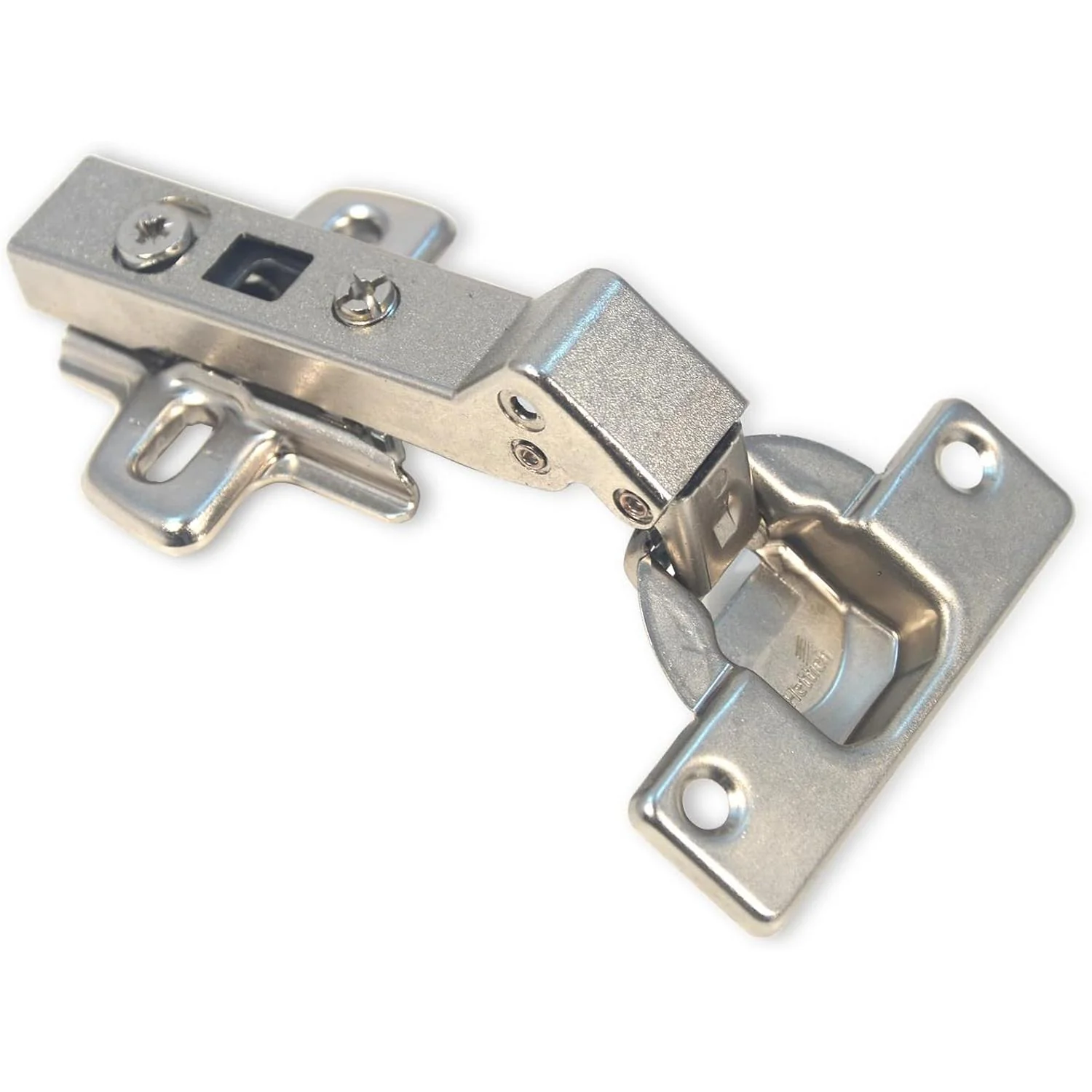

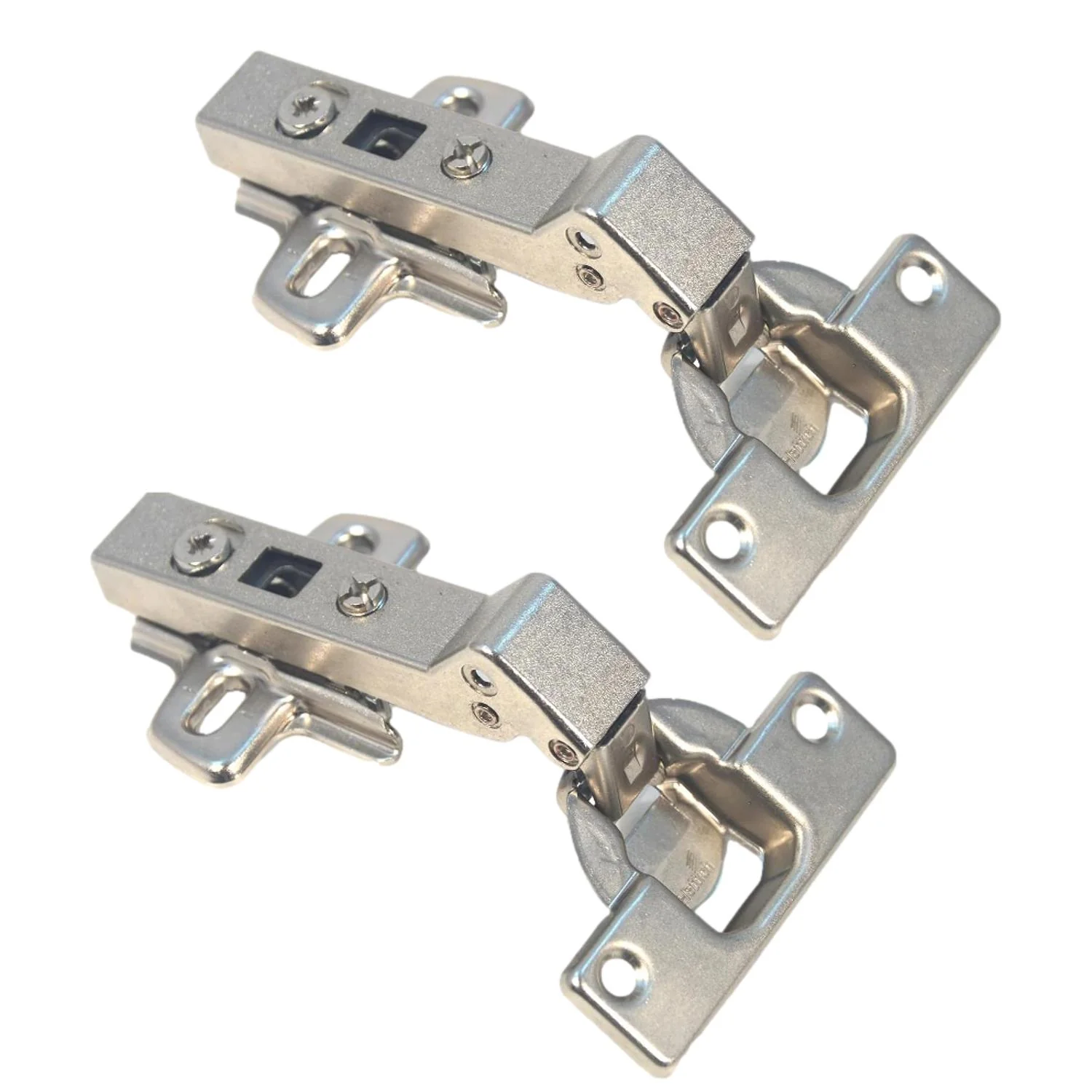

Hettich Intermat 9936 W45 95˚ Hinge 48096 & Plate 9075005 (2 Pack)
Hettich Intermat 9936 W45 Hinge 48096 with 0mm mounting plate 9075005.
Price is for two hinges and two plates.
Price is for two hinges and two plates.
- Intermat angle hinge W45
- With self closing feature (Intermat 9936 W45)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 32 mm
- Door mounting option overlay (B 0)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2 mm / -2 mm

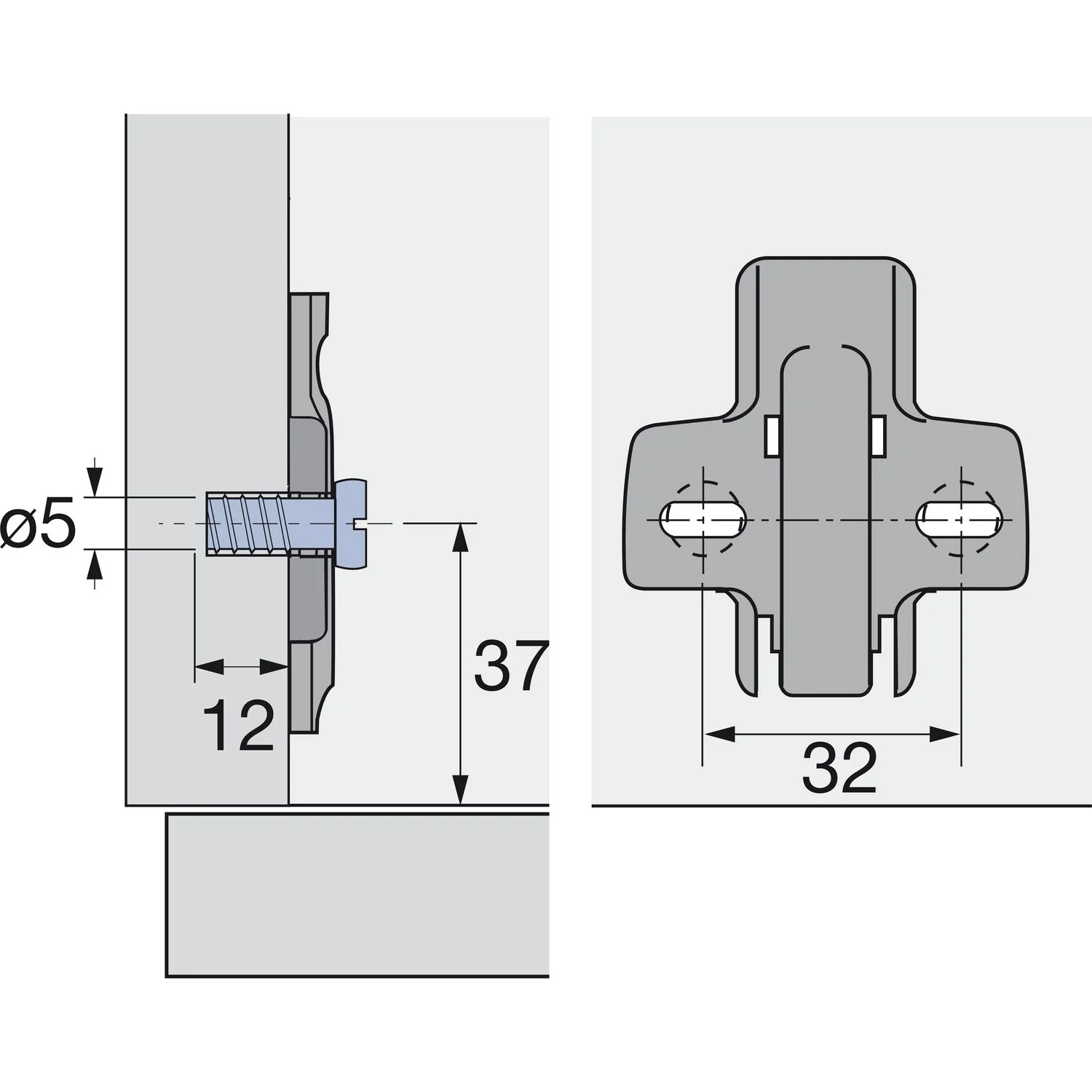

- Height adjustment at mounting plate
- Steel / die-cast zinc nickel plated
$4.90
Original: $16.34
-70%Hettich Intermat 9936 W45 95˚ Hinge 48096 & Plate 9075005 (2 Pack)—
$16.34
$4.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description

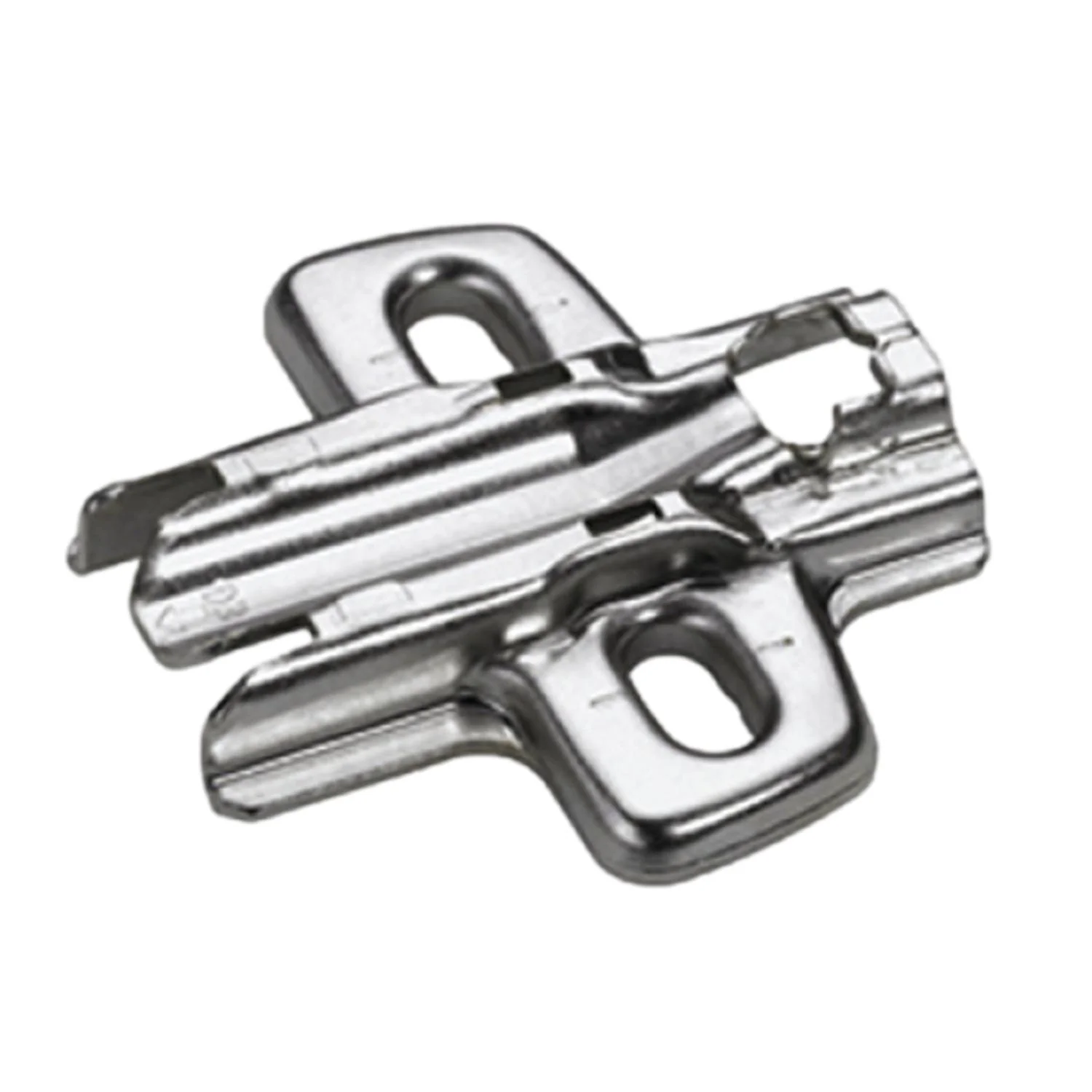

Hettich Intermat 9936 W45 Hinge 48096 with 0mm mounting plate 9075005.
Price is for two hinges and two plates.
Price is for two hinges and two plates.
- Intermat angle hinge W45
- With self closing feature (Intermat 9936 W45)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 32 mm
- Door mounting option overlay (B 0)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- Steel / die-cast zinc nickel plated
