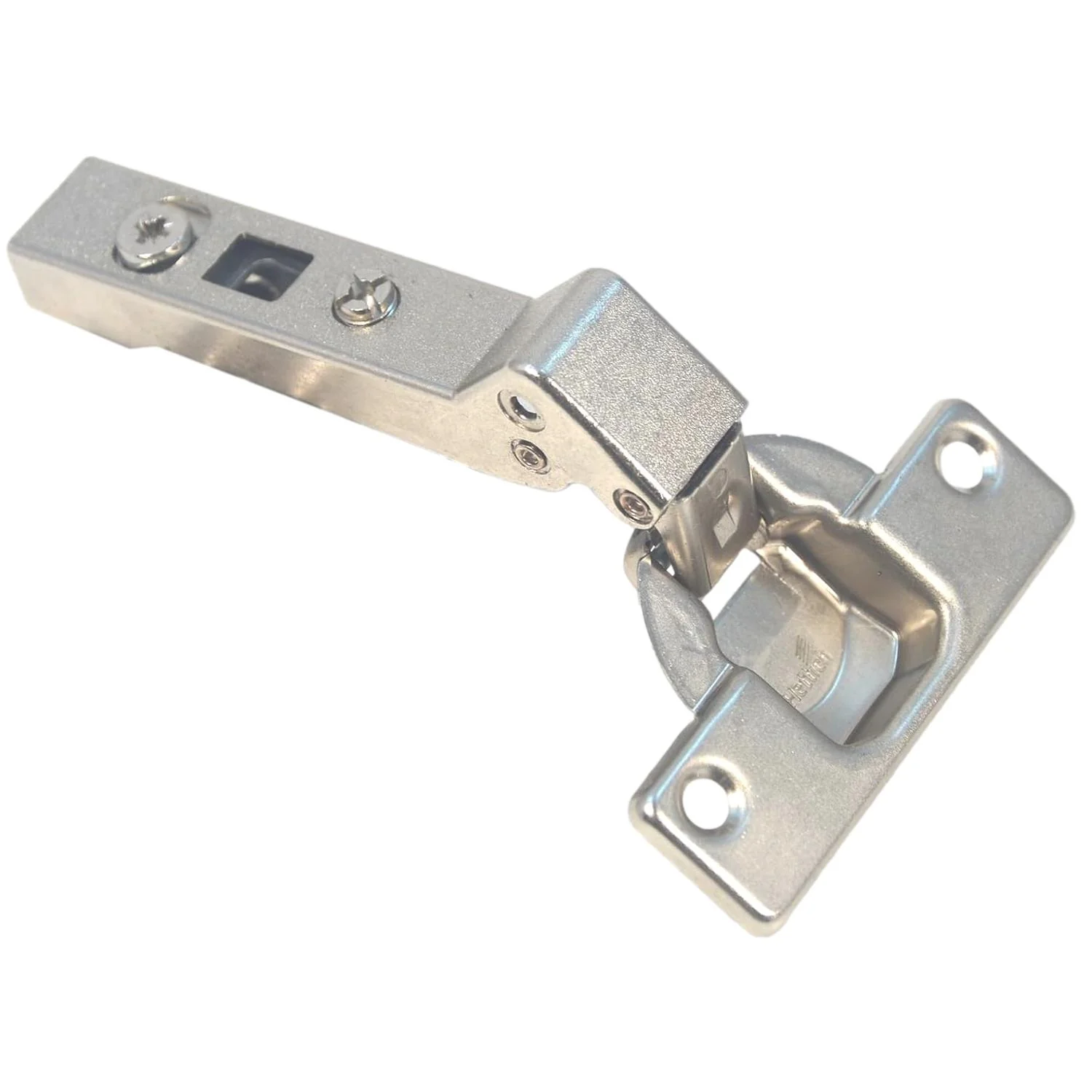

Hettich Intermat 9936 W45 95˚ Overlay Hinge 48096 TH52
Hettich Intermat 9936 W45 Hinge. 95 degrees overlay sprung hinge with TH52 drilling pattern. This is the version with the longer arm, 72mm from the knuckle to the end of the arm.
Please note hinge mounting plates and screws are not included, please purchase separately.
Please note hinge mounting plates and screws are not included, please purchase separately.
- Intermat angle hinge W45
- With self closing feature (Intermat 9936 W45)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 32 mm
- Door mounting option overlay (B 0)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- Steel / die-cast zinc nickel plated
$2.37
Original: $7.90
-70%Hettich Intermat 9936 W45 95˚ Overlay Hinge 48096 TH52—
$7.90
$2.37Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hettich Intermat 9936 W45 Hinge. 95 degrees overlay sprung hinge with TH52 drilling pattern. This is the version with the longer arm, 72mm from the knuckle to the end of the arm.
Please note hinge mounting plates and screws are not included, please purchase separately.
Please note hinge mounting plates and screws are not included, please purchase separately.
- Intermat angle hinge W45
- With self closing feature (Intermat 9936 W45)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 32 mm
- Door mounting option overlay (B 0)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- Steel / die-cast zinc nickel plated
